Solvent-Weld Waste Pipe: Sizes, Gradients, and How to Get Joints Right First Time

A plumber finishes your first-fix waste runs on a Friday afternoon. The pipes disappear under screed or behind plasterboard on Monday. Six weeks later, during second fix, someone notices a damp patch spreading across the new ceiling below the bathroom. The cause: a solvent-weld joint that wasn't cleaned before cementing. The joint looked fine. It passed a quick visual check. But it never bonded properly, and now there's a slow leak inside a wall you've already plastered and painted. Ripping it out costs ten times what the pipe did.

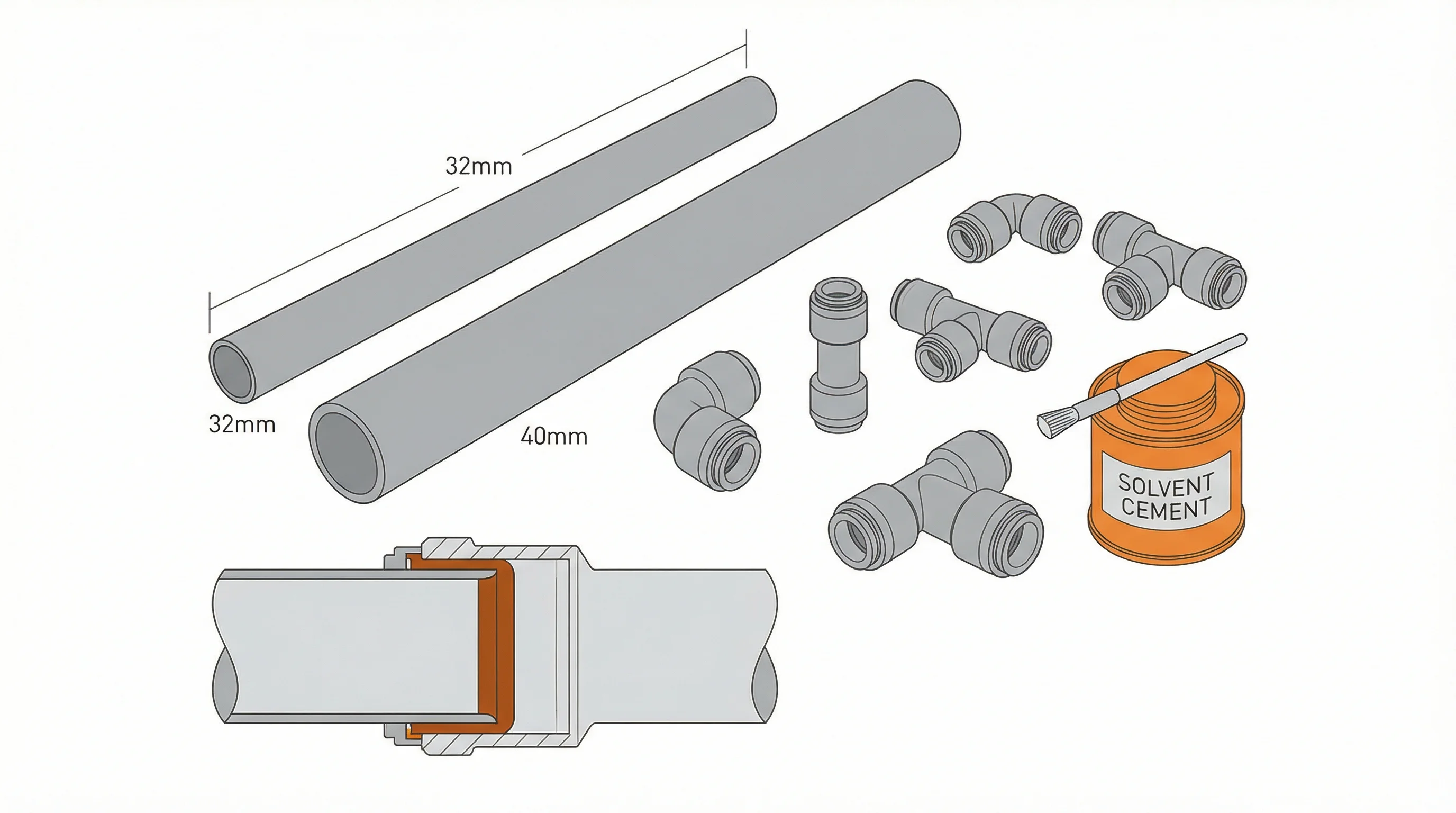

What it is and what it's for

Solvent-weld waste pipe is rigid plastic tubing used to carry waste water from sinks, basins, baths, showers, washing machines, and dishwashers to the soil stack or external gully. The pipe itself is made from ABS (Acrylonitrile Butadiene Styrene, a tough, impact-resistant plastic) and is joined using solvent cement, a chemical adhesive that partially dissolves the ABS surfaces and fuses them into a single piece. Once cured, the joint is permanent. You can't pull it apart, unscrew it, or reposition it.

That permanence is the point. Solvent-weld joints don't rely on rubber seals that can perish, loosen, or get knocked out of alignment. For waste runs that will be concealed inside floors, walls, or service voids, this is the system every experienced plumber reaches for.

The pipe complies with BS EN 1455-1:2000 and BS 5255:1989. Kitemarked product (such as FloPlast, the dominant UK brand) carries KM 548614. All major UK solvent-weld waste systems (FloPlast, Brett Martin, Osma, Polypipe Terrain, Marley, Hunter) are interchangeable in 32mm, 40mm, and 50mm sizes.

Sizes: which pipe for which appliance

This is governed by Approved Document H of the Building Regulations (the 2015 edition, currently under review by the Building Safety Regulator). The rules are straightforward but non-negotiable.

The "branch length" is the distance from the trap outlet to the point where the pipe connects to the soil stack or another main pipe. These are maximum lengths for unventilated branches (no air admittance valve). Exceed them and you need either to upsize the pipe or fit an air admittance valve (AAV) complying with BS EN 12380:2002, positioned at least 200mm above the highest trap it serves and left accessible for maintenance.

In practice, 32mm pipe is only used for short runs from hand basins. Everything else is 40mm. You'll use 50mm only where multiple appliances combine into one run, or where a run exceeds 3m and you'd rather upsize than fit an AAV.

Solvent weld vs push-fit: when each makes sense

The alternative to solvent weld is push-fit waste pipe, which uses polypropylene pipe with rubber O-ring seals. Both systems are Building Regs compliant. But they're different products with different trade-offs, and they are not interchangeable.

This last point catches people out. A 40mm solvent-weld pipe has an outside diameter of 43mm. A 40mm push-fit pipe has an outside diameter of 41mm. The pipe won't fit into the wrong system's fittings. If you've bought half your run in solvent weld and half in push-fit, you'll need compression adaptors to bridge them.

For first-fix waste runs in an extension, solvent weld is the right choice. The pipe is being concealed behind finishes. You don't want to discover a push-fit joint has loosened five years from now when a damp stain appears on a finished ceiling. Every experienced plumber on every UK building forum says the same thing: solvent weld for concealed, push-fit for accessible. The regional preference (push-fit in the North, solvent weld in the South) is trade tradition, not a quality distinction.

How to work with it

Cutting

Cut with a fine-tooth hacksaw or a plastic pipe cutter. A junior hacksaw works for 32mm; a full-size hacksaw is easier for 40mm and 50mm. After cutting, deburr the inside and outside edges with a half-round file or the back of a knife blade. Burrs on the inside create a ridge that catches hair, grease, and debris. Burrs on the outside prevent the pipe seating fully into the fitting.

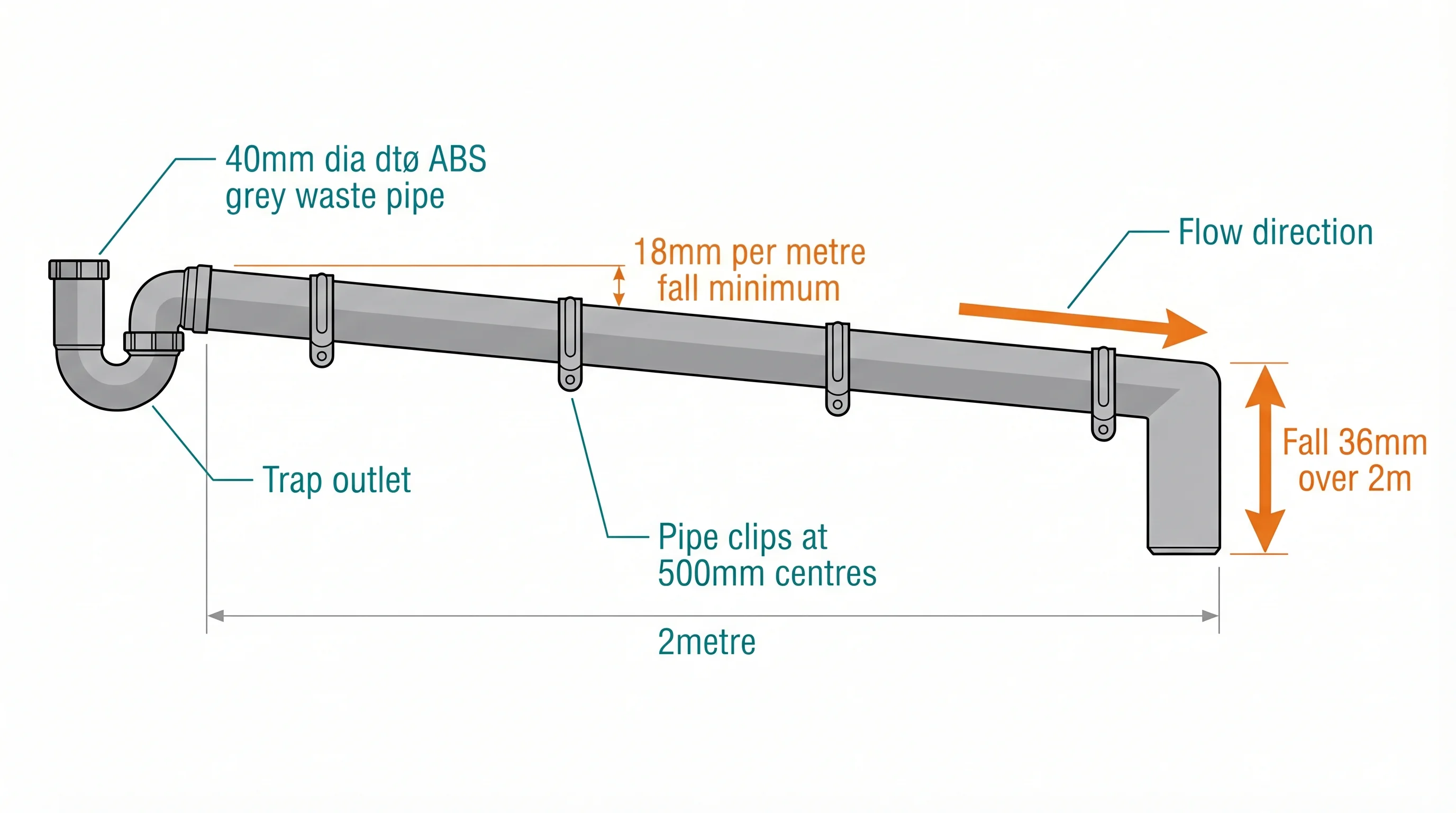

Getting the gradient right

Every horizontal waste pipe run needs a fall (slope) towards the stack or gully. Too shallow and waste water doesn't drain, leaving standing water that stinks and eventually blocks. Too steep and the liquid outruns the solids, also causing blockages, and the rushing water can siphon the trap seal (the water sitting in the U-bend that stops sewer gas coming back up).

The minimum gradient for all waste pipe sizes is 18mm of fall per metre of run. For a 2m pipe run, that means the outlet end must be at least 36mm lower than the inlet end.

Set your pipe clips at the correct height before welding anything. Use a spirit level and a tape measure. Mark the clip positions, calculate the height drop, fix the clips, and then dry-fit the pipe to confirm everything falls correctly. Adjusting gradient after solvent welding is not possible without cutting the pipe and starting again.

Click to enlarge

Making a solvent-weld joint

This is the step where mistakes become permanent. You get roughly 15-20 seconds of working time once solvent cement touches ABS. After that, the pipe is locked in place.

Dry-fit first. Assemble the entire run without cement. Push each pipe into its fitting and check alignment, gradient, and length. Then use a felt-tip pen to mark the insertion depth and rotational position on both the pipe and fitting. These marks are your guide when you do it for real.

Clean both surfaces. Apply solvent cleaner (not just a wipe with a dry cloth) to the outside of the pipe end and the inside of the fitting socket. This removes grease, dust, fingerprints, and any release agent from manufacturing. Most leaking solvent-weld joints trace back to this step being skipped.

Apply solvent cement. Use SC250 (the standard FloPlast cement) or equivalent. Apply a generous, even coat to both the pipe OD and the fitting socket ID. Don't be stingy. Insufficient cement means incomplete bonding. A bead of excess squeezed out at the joint is normal and correct.

Push and twist. Insert the pipe into the fitting with a quarter-turn twist. The twist spreads the cement evenly across the mating surfaces. Align to your pen marks immediately. Hold for 10-15 seconds while the cement begins to grip.

Wipe excess. Remove any squeezed-out cement with a clean cloth straight away. It's much harder to remove once cured.

Wait. The joint reaches initial set in about 5 minutes. Full cure takes 12 hours minimum before you run water through the system. Don't rush this. A joint that looks solid at 2 hours may still be soft enough inside to fail under pressure from a full bath draining.

Clipping and support

Horizontal runs need pipe clips at 500mm centres for 32mm and 40mm pipe. Vertical runs need clips at 1.2m centres. For long horizontal runs (over 3m), fit an expansion coupler to accommodate thermal movement. ABS pipe expands and contracts with temperature changes, and a 3m length of pipe carrying hot waste water from a dishwasher will move enough to stress fixed joints without an expansion gap.

Running through joists

Waste pipe often needs to pass through floor joists in first-fix. The Building Regulations (Approved Document A) limit what you can do to joists:

• Maximum hole diameter: 0.25 times the joist depth. For a 200mm joist, that's a 50mm hole. A 40mm pipe (43mm OD) fits. A 50mm pipe (55mm OD) does not.
• Holes must be drilled in the "permitted zone": between 0.25 and 0.4 times the span from the nearest support.
• Holes must be at least 3 diameters apart (centre to centre) and at least 100mm from any notch.
• Do not notch or drill engineered joists (I-beams, metal web joists) without checking the manufacturer's guidance. Most prohibit it entirely.

If the pipe doesn't fit through allowed holes, the pipe must run below the joists and be boxed in, or the joist design must accommodate the pipe routing from the start.

How much do you need

A typical kitchen extension waste run is 4-6m of 40mm pipe (sink, dishwasher, washing machine). A bathroom with basin, bath, and shower might need 6-10m of 40mm pipe plus 2-3m of 32mm for the basin branch, depending on the layout and distance to the soil stack.

Pipe comes in 3m lengths. You'll waste some on cuts and offcuts, so add 10-15% to your measured total.

Worked example for a kitchen extension with a sink and dishwasher, soil stack 4m away:

• 40mm pipe: 2 x 3m lengths (6m total, allowing for cuts and the branch from the dishwasher)
• Solvent cement: 1 tin of SC250 (covers roughly 50 joints, far more than you'll need)
• Solvent cleaner: 1 tin
• Fittings: varies by layout, but budget 4-6 fittings (bends, tees, couplers)
• Pipe clips: 1 per 500mm of horizontal run, so roughly 8-10 clips

Cost and where to buy

Solvent-weld waste pipe is inexpensive. The pipe itself is rarely a meaningful proportion of project cost, but buying the wrong system or the wrong size wastes time and money on returns.

Prices are per 3m length including VAT, checked March 2026. Trade suppliers like City Plumbing and Jewson carry the same product at comparable or slightly higher list prices, but trade account pricing is often lower.

FloPlast is the dominant brand across all UK retailers. Toolstation sells Aquaflow brand, which is listed as PVC-U rather than ABS. This matters: PVC-U technically requires a primer step before cementing, while ABS does not. If you're buying from Toolstation, check the material label and match your solvent cement accordingly. For simplicity, stick with FloPlast ABS from any major retailer and use SC250 cement.

Alternatives

Push-fit waste pipe is the main alternative. It's polypropylene rather than ABS, assembles without cement, and can be dismantled and repositioned. Use it for accessible waste runs (under a kitchen sink, behind a bathroom pedestal) where you want the option to modify the layout later. Don't use it for concealed runs.

50mm pipe can replace 40mm for runs that exceed the 3m maximum branch length in Approved Document H Table 2, giving you up to 4m before you need an air admittance valve. It's a way to avoid fitting an AAV on a long run, though the pipe is significantly more expensive (roughly double the price of 40mm) and harder to route through standard joist holes.

Where you'll need this

• First-fix plumbing - concealed waste pipe runs from kitchen sink, dishwasher, and washing machine to soil stack
• Drainage - waste water connections from above-ground pipe to below-ground drainage
• Plumbing layout planning - planning waste pipe routes, calculating gradients, and specifying pipe sizes before first fix begins

Solvent-weld waste pipe appears in the first-fix phase of any extension, loft conversion, or renovation that involves new plumbing. The principles are the same whether you're fitting out a kitchen, bathroom, or utility room.

Common mistakes

Skipping the solvent cleaner. This is the single most common cause of leaking solvent-weld joints. Wiping the pipe with a dry cloth isn't enough. Solvent cleaner chemically prepares the surface. Without it, the cement sits on top of a layer of grease, dust, or release agent and never bonds to the ABS underneath.

Not dry-fitting before welding. You have only seconds to adjust alignment before the cement sets. That's not enough time to check alignment, gradient, or whether the pipe is the right length. Dry-fit the entire run. Mark every joint with a felt-tip pen. Then commit.

Getting the gradient wrong. A waste pipe that slopes at only 10mm per metre will drain slowly and block regularly. A pipe that slopes at 100mm per metre will siphon the trap, letting sewer gas into the room. Both problems are invisible once the pipe is concealed. Measure the gradient with a spirit level and tape measure before fixing clips, not after.

Buying push-fit pipe for a solvent-weld installation (or vice versa). The outside diameters are different. 40mm solvent-weld pipe is 43mm OD; 40mm push-fit is 41mm OD. They look almost identical on the shelf. Check the packaging.

Welding joints in cold weather without adjusting. Solvent cement sets more slowly below 5C. In an unheated extension during winter, joints that feel firm after 5 minutes may not have bonded fully. Allow extra curing time (24 hours rather than 12) when working in cold conditions.
