Push-Fit Fittings: How They Work, What to Buy, and How to Avoid Leaks

Your plumber has just run 30 metres of pipe through the joists for your extension's hot and cold water supply. Every direction change, every branch to a radiator, every connection to a tap needs a fitting. On a typical first-fix plumbing job, that's 40 to 80 individual joints. With push-fit fittings, each one takes about 10 seconds. With soldered copper, each one takes 5 minutes and a blowtorch. The speed difference is why push-fit has become the default joining method for domestic plumbing in the UK. But "push and click" simplicity hides a few ways to get it badly wrong, and a leak behind a plasterboard wall three months after your extension is finished is nobody's idea of a good time.

What it is and what it's for

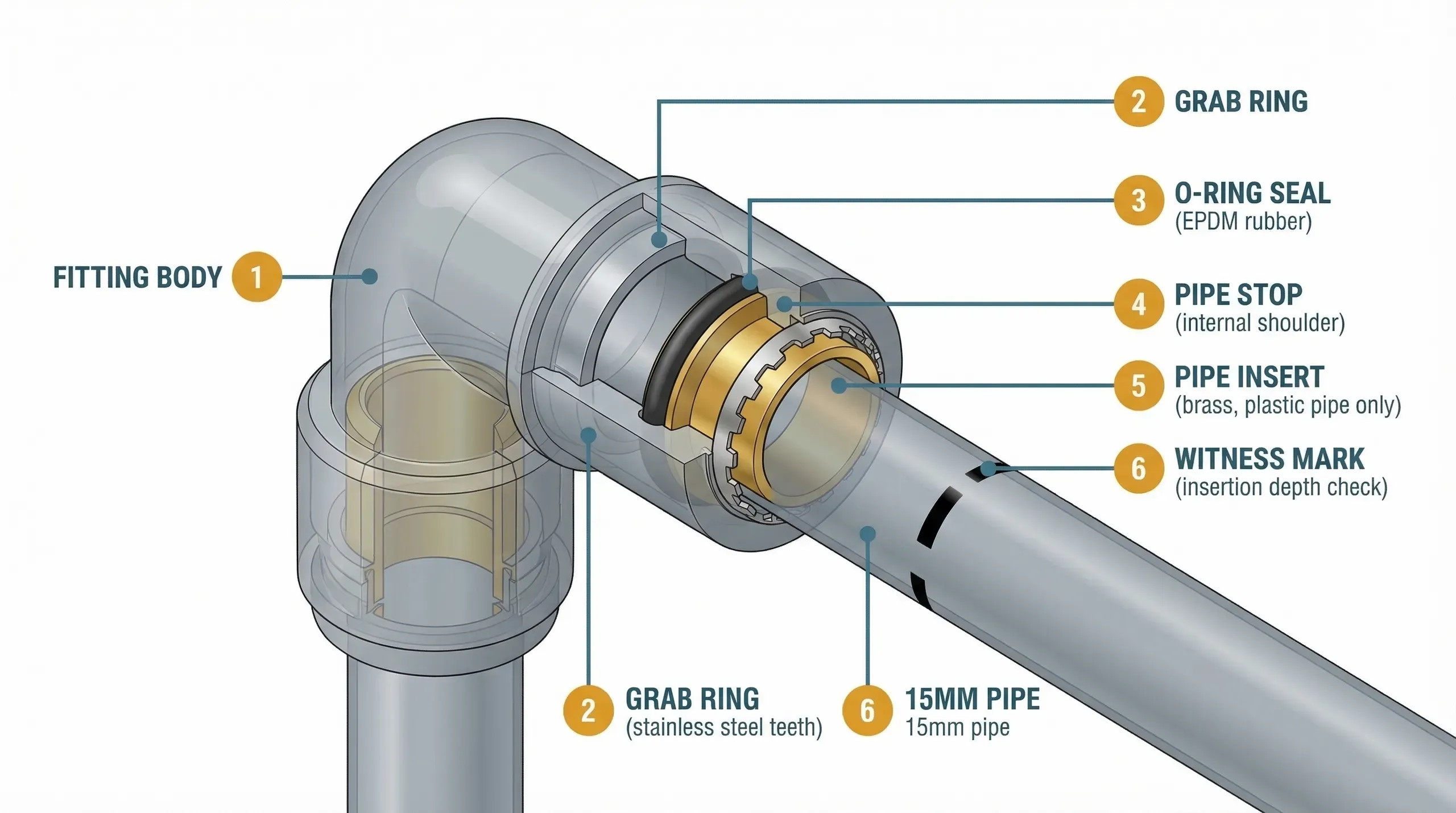

A push-fit fitting is a plastic or brass connector that joins plumbing pipes without soldering, glue, or specialist tools. You push the pipe into the fitting until it clicks. Inside, a stainless steel grab ring (a toothed metal collar) bites into the pipe's outer surface and locks it in place. Behind the grab ring sits an EPDM O-ring (a rubber seal) that makes the joint watertight. That's the entire mechanism. No flux, no heat, no compression nuts.

Push-fit fittings work with both plastic (polybutylene) pipe and copper pipe. The only difference: when connecting plastic pipe, you must first insert a metal stiffener (called a pipe insert) into the end of the pipe to stop it collapsing under the grip of the grab ring. Copper pipe is rigid enough that it doesn't need one.

The fittings come in every configuration you'd expect: 90-degree elbows for direction changes, equal tees for branching off, straight couplers for joining two lengths, reducing couplers for stepping between 22mm and 15mm pipe, stop ends for capping off, and isolation valves for shutting water off to individual appliances. Standard domestic sizes are 15mm (for individual taps, basins, radiators) and 22mm (for main supply runs, baths, boilers).

All push-fit fittings sold in the UK must comply with BS 7291 and carry WRAS approval (Water Regulations Advisory Scheme), confirming they're safe for drinking water. The Water Supply (Water Fittings) Regulations 1999 govern the entire installation, and your plumber must pressure-test the complete system before any pipework is concealed behind walls or under floors.

Types of push-fit fittings

The two variables that matter are material (plastic body vs brass body) and whether the fitting is demountable (can be taken apart again) or permanent.

Plastic push-fit (demountable)

This is what most people mean when they say "push-fit." A plastic body with a stainless steel grab ring and EPDM O-ring inside. Rated to 8 bar at 20°C and 4 bar at 65°C for standard (hot and cold water) fittings. Heating-rated versions (Class T under BS 7291 Part 3) handle up to 82°C at 3 bar working pressure. Residential water systems typically run at 3 to 4 bar, so these ratings are comfortably within limits.

The key advantage: demountable. If you need to modify a pipe run, you release the grab ring (method depends on brand), pull the pipe out, and reassemble. No cutting, no waste.

Brass push-fit (permanent and demountable)

Brass-bodied push-fit fittings use the same push-and-click mechanism but with a dezincification-resistant (DZR) brass body instead of plastic. They're heavier, more expensive, and rated to higher pressures (up to 20 bar for permanent types like Tectite Sprint). The brass body also handles heat better, making them a common choice directly behind boilers or next to cylinders where temperatures spike.

Three variants exist in the UK market:

Brass permanent fittings are a good option when you want push-fit speed but the joint will be buried in concrete or hidden permanently. A plastic demountable fitting in a location you can never reach again is a risk some plumbers won't take.

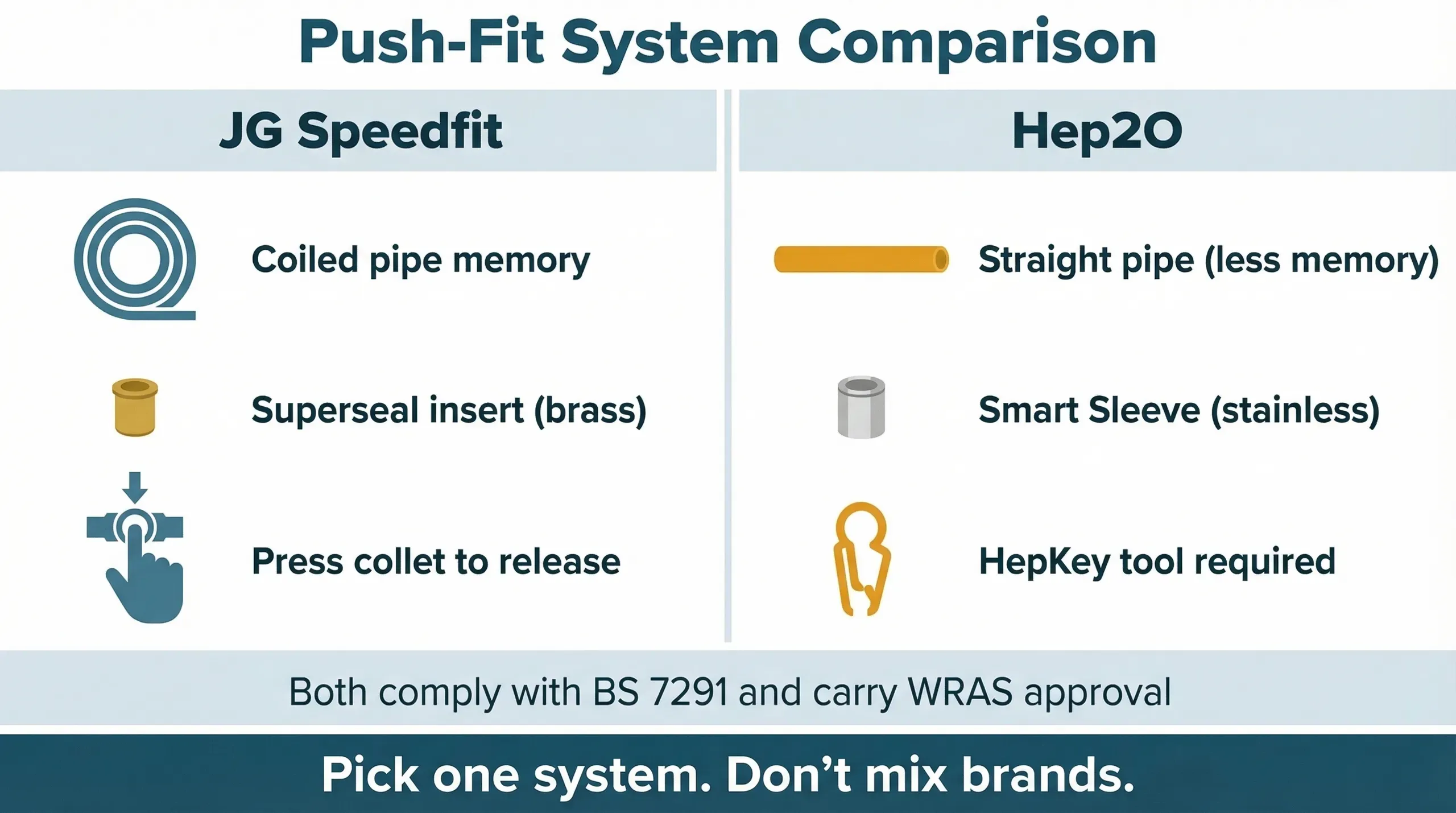

Speedfit vs Hep2O: the two systems

Two brands dominate UK push-fit plumbing: JG Speedfit (made by John Guest) and Hep2O (made by Wavin). Both comply with BS 7291 and both carry WRAS approval. Both work. But they are different systems with different pipe, different inserts, and different disconnection methods. Mixing them is possible (the outer diameters match) but voids both manufacturers' warranties and creates a real risk of failure because the pipe inserts have different internal dimensions.

Pick one system and stick with it for the entire project.

Professional plumber forums show a mild preference for Hep2O ("the only plastics I will use" is a recurring comment), largely because the pipe lays straighter and the insertion confirmation is more definitive. JG Speedfit outsells Hep2O and has broader retail distribution. One freeze-damage report noted Speedfit's grab ring held while Hep2O and Polypipe fittings failed, though this is a single anecdote rather than a pattern.

For a homeowner, either system is a solid choice. The practical decision is often which one your plumber already carries in their van.

Click to enlarge

How to work with push-fit fittings

Push-fit is marketed as simple, and the basic concept is. But the gap between "pushed in" and "properly installed" is where leaks happen. Most push-fit failures are installation errors, not product defects.

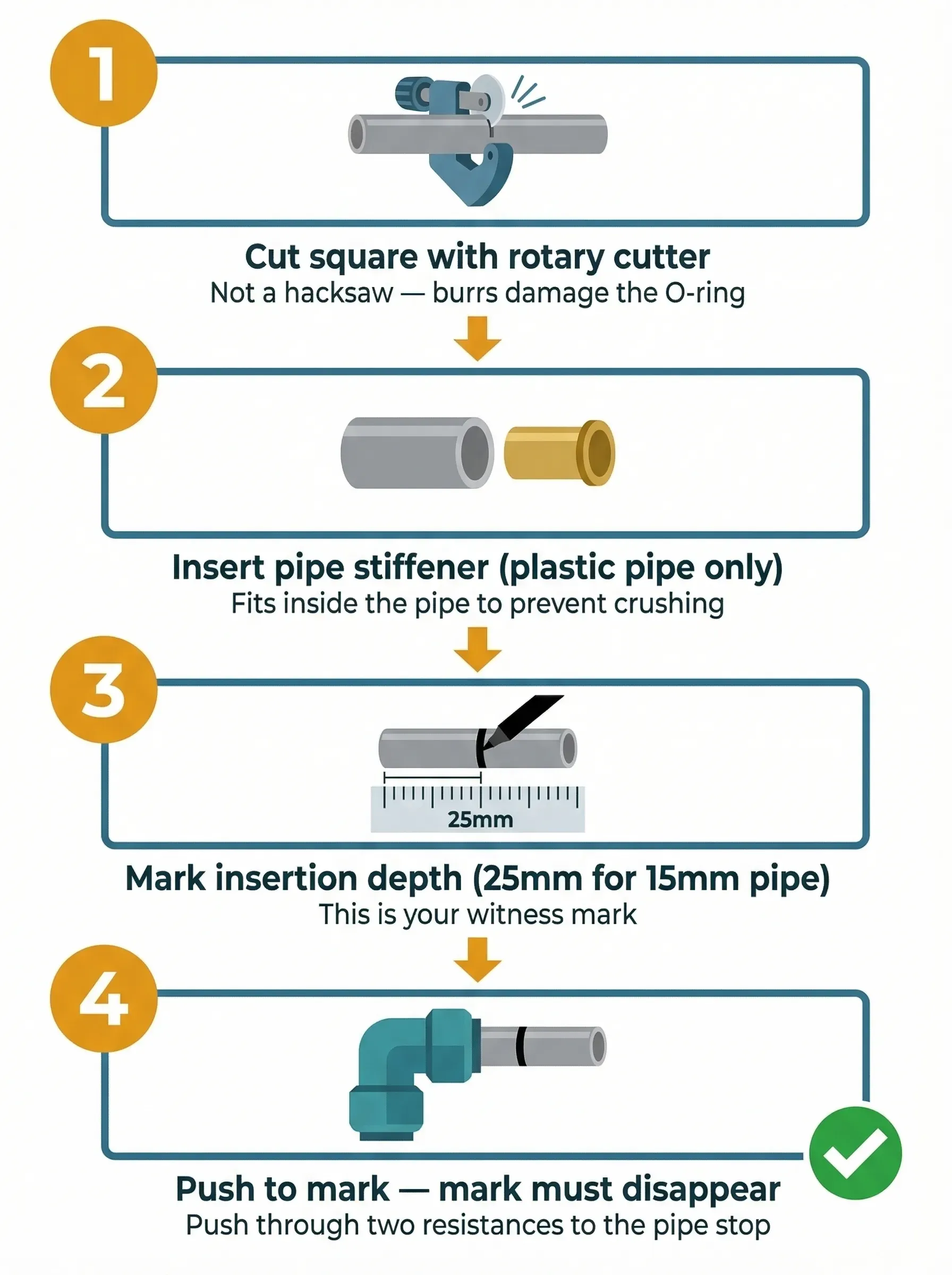

Cutting the pipe

Use a rotary pipe cutter. Not a hacksaw. A hacksaw leaves a rough, angled edge that damages the O-ring as the pipe slides past it, and those tiny score marks are invisible to the eye but enough to cause a slow weep weeks later. Rotary cutters produce a clean, square cut every time. Replace the cutting wheel after about 200 cuts, because a dull wheel creates an oval pipe profile instead of a true circle, and an oval pipe won't seal properly in a round O-ring.

After cutting, deburr the inside and outside edges of the pipe. A small burr on the inner edge can shave material off the O-ring during insertion.

Fitting the pipe insert

Every connection to plastic pipe requires an insert inside the pipe end. This is the step most often skipped by people in a hurry, and it's the single most common cause of push-fit leaks.

The insert sits inside the pipe and stops the pipe wall from compressing inward when the grab ring teeth bite into the outside. Without it, the grab ring squeezes the pipe oval, the O-ring can't seal against an oval surface, and you get a drip. The insert also carries its own small O-ring that seals against the pipe's inner wall.

Push the insert firmly into the pipe end until it's fully seated. You do not need an insert when connecting copper pipe; the copper is rigid enough to resist the grab ring on its own.

Making the connection

Mark the insertion depth on the pipe before you push it in. The typical depth is 25mm for 15mm pipe and 28mm for 22mm pipe. Draw a line at that distance from the pipe end with a marker pen (this is your witness mark). Push the pipe firmly into the fitting until that mark disappears completely inside the fitting body.

This is where most people go wrong. The pipe meets resistance twice on the way in: first at the grab ring, then at the O-ring. Both require a firm push to get past. It's easy to stop at the O-ring and assume the pipe is fully home. It isn't. The pipe must reach the internal pipe stop (a physical shoulder inside the fitting) beyond the O-ring.

With Hep2O fittings, the In4Sure system gives you a tactile rumble sensation when the pipe passes over internal ridges, confirming full insertion. With Speedfit, you rely on the witness mark disappearing. Either way, check. Every time.

Disconnecting a fitting

Speedfit: push the collet (the plastic ring at the mouth of the fitting) toward the fitting body while pulling the pipe out. You can do this with your fingers or with a small plastic disconnect clip. The collet compresses the grab ring teeth, releasing their grip on the pipe.

Hep2O: you need a HepKey tool. The HepKey clips around the pipe, slides up to the fitting mouth, and mechanically pushes the internal sleeve to release the grab ring. You cannot do this by hand. For pipes close together in confined spaces, Wavin sell a slimline HepTool that works in tighter gaps.

Click to enlarge

Where not to use push-fit

Push-fit fittings are brilliant for most domestic plumbing. But they have specific limitations that matter.

Gas supply. Plastic push-fit fittings must never be used on gas or oil supply pipes. Full stop.

First metre from the boiler. BS 5955 Part 8 requires a minimum of 1 metre of copper pipe between the boiler casing and any plastic pipework. The boiler connections reach temperatures during startup that can exceed plastic pipe ratings, even for heating-rated fittings.

Secondary circulation hot water (hot return systems). These systems recirculate hot water continuously, and the aggressive oxygenated water attacks plastic fittings over time. If your extension has a secondary circulation system, the plumber should use press-fit with metal-lined composite pipe (MLCP) or soldered copper. Standard plastic push-fit is not rated for this application.

Exposed external pipework. UV exposure and freeze-thaw cycles degrade the O-ring seals in push-fit fittings within 3 to 4 years. External pipes should be copper with soldered or compression joints, or routed through sealed, insulated ducting.

Solid fuel boilers. Uncontrolled temperature spikes from solid fuel systems (wood burners with back boilers, Agas) can exceed any plastic fitting's rating. Copper and compression fittings throughout.

The imperial pipe trap

If your extension connects to existing pipework in a house built before the early 1970s, the existing copper pipe may be imperial sized, not metric. Half-inch imperial copper has an outer diameter of approximately 15.9mm. Metric 15mm pipe has an outer diameter of exactly 15.0mm. That 0.9mm difference is invisible to the eye but it over-compresses the O-ring inside a standard 15mm push-fit fitting, causing it to leak.

Compression fittings tolerate this difference because the olive deforms to fill the gap. Push-fit fittings do not.

The solution: JG Speedfit makes an imperial-to-metric adapter (part number NC471) specifically for this. Alternatively, your plumber can cut back the imperial section and transition to metric copper or plastic before using push-fit.

If you're not sure whether your existing pipework is imperial or metric, measure the outer diameter with a vernier calliper. 15.0mm is metric. Anything between 15.8mm and 16.0mm is imperial. Don't guess. An adapter is far cheaper than a ceiling repair.

Cost and where to buy

Buying in multi-packs drops the per-unit cost by 10-25%. For a first-fix plumbing job with 40-80 fittings, that saving adds up quickly.

Screwfix, Toolstation, Wickes, Travis Perkins, and Jewson all stock both brands. Screwfix and Toolstation also carry Flomasta (Screwfix's own brand), which is the budget option for those watching every penny.

Alternatives

Compression fittings use a brass nut and olive (a soft metal ring) to create a mechanical seal when tightened with two spanners. They're slower to install, require more skill to get consistently tight, and cost more per fitting. But they handle higher temperatures, tolerate imperial pipe without adapters, and many experienced plumbers prefer them for concealed permanent connections because a properly made compression joint has a longer track record than push-fit.

Soldered copper joints (using flux and a blowtorch to melt solder into the capillary gap between pipe and fitting) are the traditional method. Strongest joint type, cheapest per fitting, but requires skill and a gas torch. On site, hot work in joisted floors means fire risk and the need for a fire extinguisher and hot work permit in some situations.

Press-fit systems (like Viega ProPress or Geberit Mapress) use a battery-powered press tool to crimp a metal fitting permanently onto the pipe. Fast, reliable, and rated for high-temperature applications including secondary circulation systems. The fittings cost more and specialist press tools are expensive, which is why hire is the norm for one-off jobs.

For most domestic extension work, plastic push-fit is the right choice for speed and cost. Use compression or soldered copper where the joint is truly inaccessible, where temperatures exceed push-fit ratings, or where you're connecting to imperial pipework.

Common mistakes

Forgetting the pipe insert on plastic pipe. The grab ring compresses the pipe wall inward without one. The joint passes a quick visual check, passes an initial pressure test, and then weeps slowly over weeks as the deformed pipe gradually unseats from the O-ring. Every insert. Every connection. No exceptions.

Not pushing the pipe far enough in. The pipe meets noticeable resistance at the grab ring and again at the O-ring. Stopping at the O-ring instead of pushing through to the pipe stop is the most common installation error in the industry. Mark your insertion depth on the pipe beforehand and confirm the mark has disappeared inside the fitting.

Using a hacksaw instead of a rotary pipe cutter. Hacksaw cuts leave burrs and rough edges that score the O-ring during insertion. The joint looks fine. It holds pressure initially. Then a tiny imperfection in the O-ring opens up under thermal cycling and you get a slow leak. A decent rotary pipe cutter costs under £10.

Mixing JG Speedfit and Hep2O. The outer diameters match so the pipe physically fits into either brand's fittings. But the pipe inserts are not interchangeable (different internal bore dimensions), and mixing voids both warranties. If your plumber started with Speedfit, finish with Speedfit.

Connecting to imperial copper without checking. In any house built before the early 1970s, the existing copper may be half-inch imperial rather than 15mm metric. The 0.9mm diameter difference causes push-fit O-ring over-compression and slow leaks. Measure before connecting. Use an imperial-to-metric adapter if needed.

Using non-heating-rated fittings on central heating. Standard push-fit fittings (Class S, rated to 65°C) must not be used on central heating circuits. Heating-rated fittings (Class T, rated to 82°C) look identical but have a different O-ring compound and are marked accordingly. Check the packaging.

Where you'll need this

Push-fit fittings are used wherever plumbing pipes need to change direction, branch off, or connect to appliances and fixtures:

• First fix plumbing - joining pipe runs through joists, branching to radiator drops, connecting hot and cold supply runs
• Second fix plumbing - final connections to taps, basins, toilets, washing machines, and dishwashers

These fittings appear in every plumbing phase of any extension, renovation, or new-build project. Second fix adds further connections for appliance hookups and exposed pipework under sinks.
