15mm Copper Pipe: Sizes, Joining Methods, and What to Buy
The complete UK guide to 15mm copper pipe for domestic plumbing. Joining methods, imperial vs metric, how to cut and deburr, current prices from ~£13-14 per 3m length.
Your plumber runs 30 metres of copper pipe through the floor joists, boards over, and plasters the walls. Six months later, a fitting weeps. Nobody photographed the pipe routes. Nobody knows where the joints are. Ripping up a finished floor to find a compression fitting that wasn't tightened correctly costs more than the entire first-fix plumbing bill. Understanding what 15mm copper pipe is, how it's joined, and what goes wrong puts you in a position to ask the right questions before the floorboards go down.
What it is and what it's for

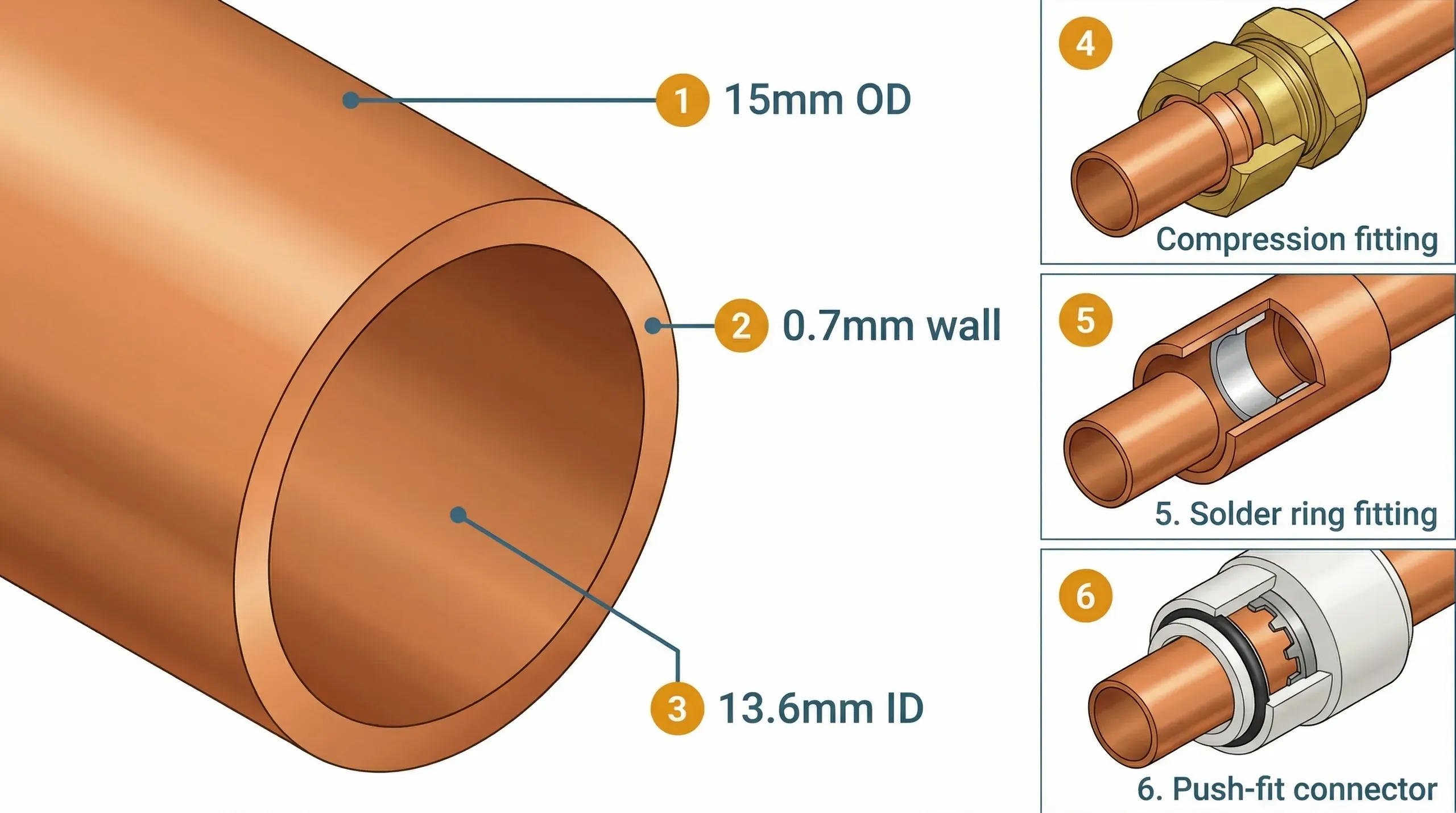

15mm copper pipe is the standard tube used for hot and cold water supply runs in UK domestic plumbing. Every tap, basin, shower, toilet cistern, and kitchen sink in a typical house is fed by 15mm pipe. The "15mm" refers to the outside diameter (OD), not the bore. The internal diameter is 13.6mm, because the standard wall thickness is 0.7mm.
It's sold in straight lengths of 2m or 3m. The 3m length is what plumbers buy for new installations because it means fewer joints per run, and fewer joints means fewer potential leak points. Copper pipe is rigid, which is both its strength and its limitation. It holds its shape, supports itself between clips, and looks clean when exposed. But it can't flex around corners the way plastic pipe can, so every change of direction needs either a bent section or a fitting.
The governing standard is BS EN 1057:2006 (which replaced the older BS 2871 Part 1 that plumbers still call "Table X"). Any pipe you buy from a UK merchant will be stamped EN 1057 and carry a Kitemark. The grade you want for domestic work is R250, which means half-hard temper. That's the standard product on every shelf. You don't need to ask for it specifically; it's all that's stocked for domestic use.
Copper complies with the Water Supply (Water Fittings) Regulations 1999, which govern every water fitting in England and Wales. It's approved for potable (drinking) water, it doesn't leach chemicals, and it naturally inhibits bacterial growth. It's also fire-resistant and UV-stable, which means it can run through unheated voids and across walls exposed to sunlight without degrading.
Types, sizes, and when to use which
15mm is the workhorse, but it sits within a range. Understanding the full set prevents over-specification (wasting money on larger pipe you don't need) and under-specification (starving a tap of flow).
| Size | Typical use | When you need it |
|---|---|---|
| 8mm / 10mm (microbore) | Individual radiator feeds from a manifold | Heating circuits only. Never for water supply. |
| 15mm | All individual fixture supplies: taps, basins, WCs, showers, kitchen sinks, single radiator branches | The default for almost everything in a domestic system on mains pressure |
| 22mm | Main header runs from the boiler, bath fills in tank-fed systems, branches feeding 3+ radiators, long runs over 10m | When your plumber's design drawing shows a thicker line on the main runs |
| 28mm | Main flow and return from boiler in larger systems, commercial applications | Rare in domestic extensions. Your plumber will specify if needed. |
On a modern combi boiler system with mains pressure (typically 3-4 bar), 15mm is adequate for every individual fixture supply. The pipe diameter only becomes a constraint on very long runs where friction losses reduce flow, or in older gravity-fed and tank-fed systems where the pressure head is lower and the pipe needs to be wider to deliver acceptable flow rates.
The practical rule: if your plumber draws a layout and everything is 15mm except the main feeds, that's normal. If they're running 22mm to every tap, they're over-specifying and the material cost is roughly double for no benefit.
The imperial vs metric trap
This catches more DIYers than any other plumbing issue. Before 1972, UK plumbing used imperial measurements. The standard domestic supply pipe was 1/2 inch. After 1972, the UK switched to metric. The replacement was 15mm.
They look almost identical. They are not interchangeable.
The confusion exists because imperial pipe was measured by inside diameter (bore), while metric pipe is measured by outside diameter. A 1/2 inch pipe (measured by its bore) has an outside diameter of approximately 15.8mm. A metric 15mm pipe has an outside diameter of exactly 15mm. That 0.8mm difference means a standard 15mm compression fitting may not seal reliably on 1/2 inch pipe. The olive can't compress evenly, and you get a slow weep that might not show up for weeks.

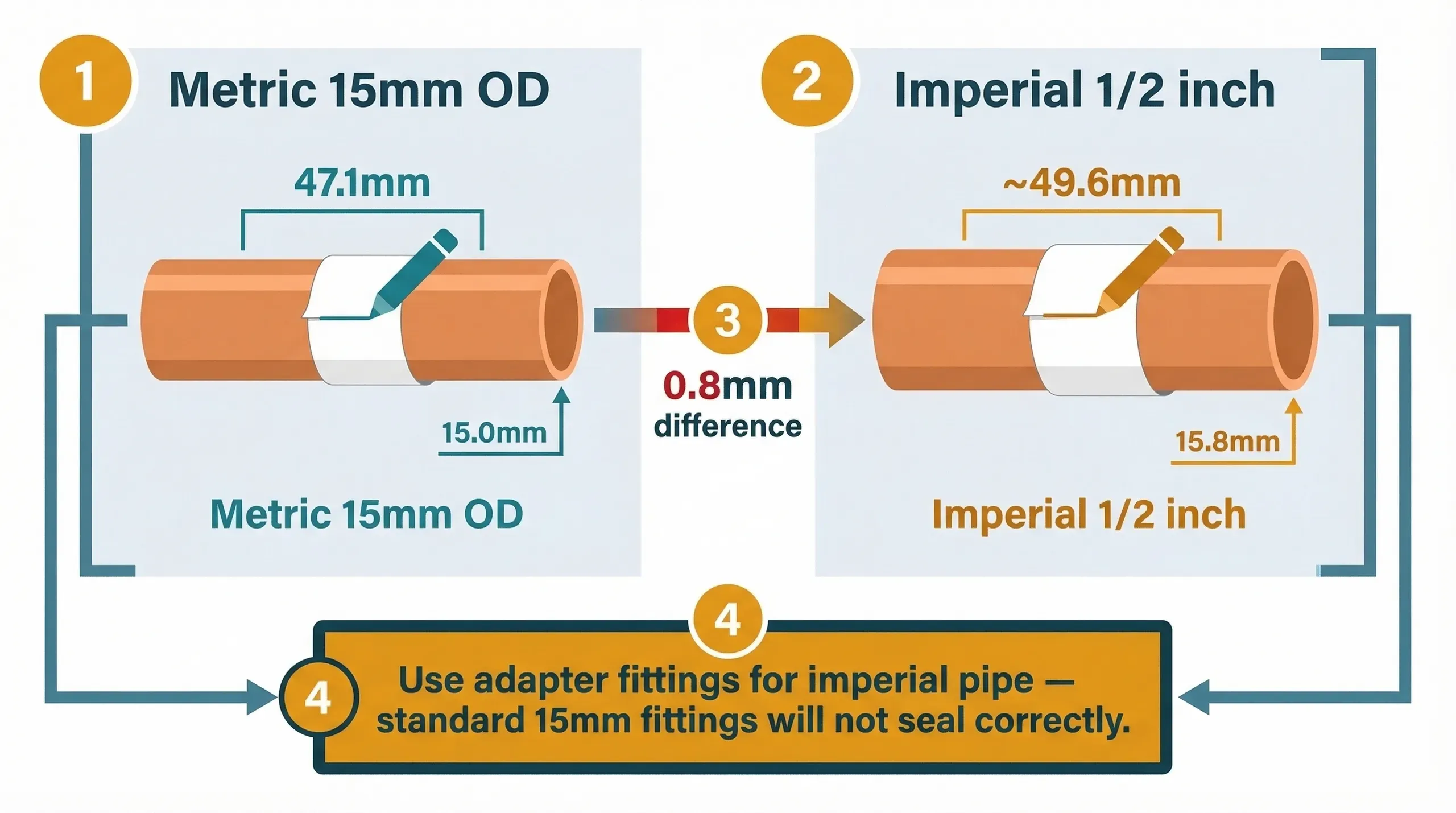

To identify what you've got, wrap a strip of paper tightly around the pipe and mark where it overlaps. Measure the circumference. Metric 15mm pipe gives you 47.1mm. If the measurement is noticeably larger, you have 1/2 inch imperial pipe. Use specific 1/2" to 15mm adapters at the join, available at all merchants for a couple of pounds.
If your house was built before the mid-1970s and you're extending the existing pipework, check before you buy fittings. Don't assume it's metric because it looks the same.
How to work with it
Cutting

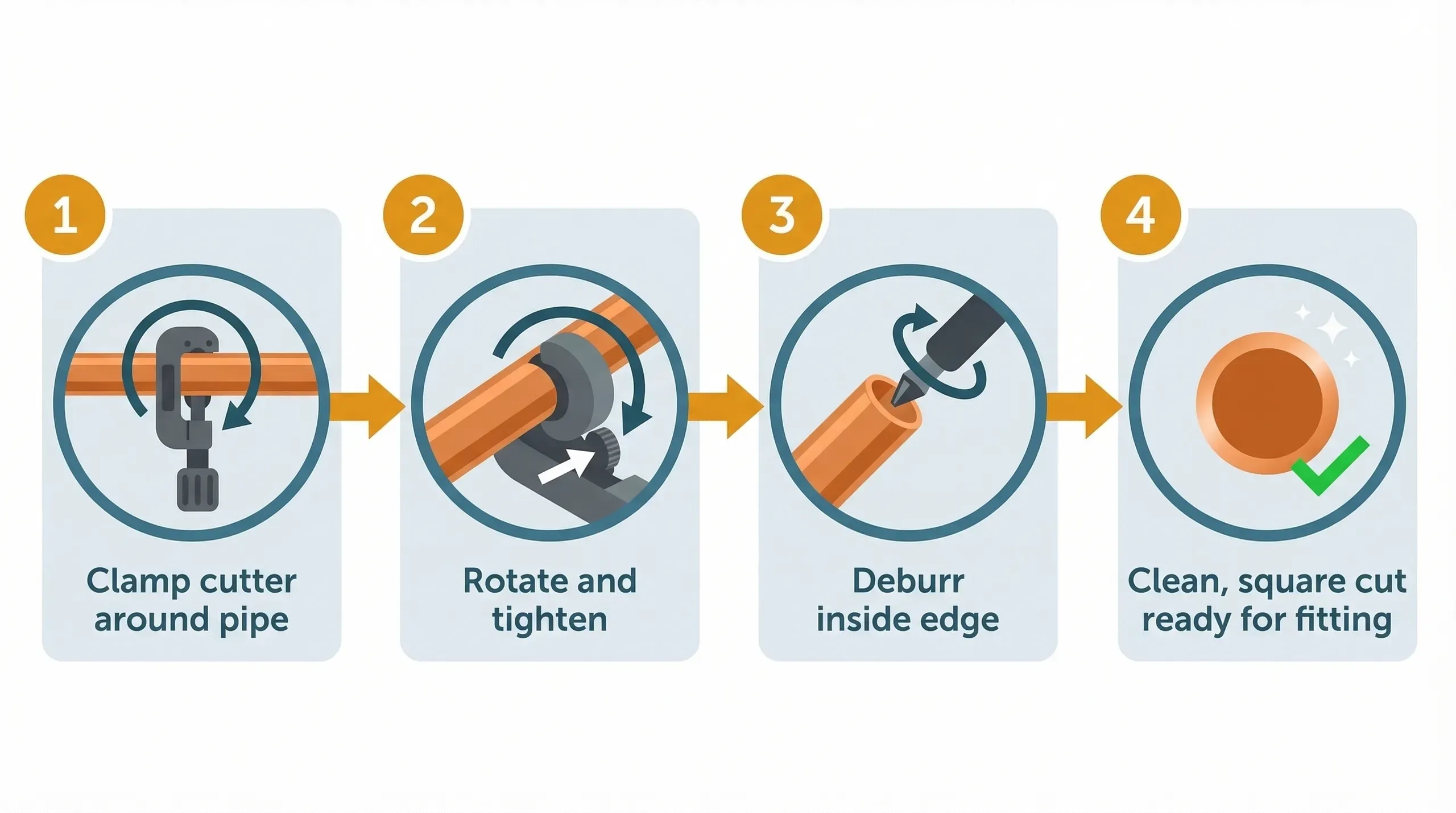

A pipe cutter (also called a pipe slice or wheel cutter) is the right tool. It costs £5 – £10 and produces a clean, square cut with minimal burr. Clamp the cutter around the pipe, tighten the wheel until it bites, and rotate. Tighten a quarter turn after each full rotation. Six to eight rotations and you're through.
A hacksaw works too, but it leaves a rougher edge and tends to cut at an angle unless you use a pipe guide. If you use a hacksaw, file the cut end flat before deburring.
Deburring
Every cut leaves a ridge of copper on the inside edge. That's a burr. It restricts flow, traps debris, and prevents fittings from seating properly. Run a deburring tool (a small conical blade, usually built into the back of a pipe cutter) around the inside edge until it's smooth. Takes five seconds. Skipping it is the most common beginner mistake.
Push a small wad of cotton wool into the pipe before cutting if you're working on a live system. It catches the copper shavings (swarf) that would otherwise travel through the pipework and damage tap cartridges and valve seats.
Bending
You can bend 15mm copper pipe using a pipe bender (the spring type costs about £5). Slide the spring over the pipe, bend by hand around your knee to the angle you need. The practical minimum radius for a neat bend is about 100mm. Tighter than that and the pipe flattens, which restricts flow and looks poor.
For sharp 90-degree changes of direction, use a fitting (elbow). Bends are for gentle curves and offsets.
Clipping
Copper pipe must be supported at regular intervals to prevent sagging, rattling, and stress on joints. Industry standard spacing for 15mm pipe:
- Horizontal runs: clip every 1.2m
- Vertical runs: clip every 1.8m
Use copper or brass pipe clips on exposed runs. Plastic clips are cheaper and fine for concealed work. Leave a slight gap for thermal expansion on hot water runs; don't clip so tightly that the pipe can't move at all.
Joining methods: which one and when
This is where most guides list three methods and leave you guessing. Here's the decision framework.
| Method | Heat needed | DIY suitability | Removable | Fitting cost (each) | Best for |
|---|---|---|---|---|---|
| Compression | No | Excellent | Yes (new olive needed) | £1.50-4.00 | DIY first attempts, accessible locations, joints you may need to undo later |
| Solder ring (Yorkshire fitting) | Yes - blowtorch | Good with practice | No | £0.80-2.00 | Permanent, neat joints on visible pipework |
| End-feed capillary | Yes - blowtorch | Difficult | No | £0.30-1.00 | Professional plumbers working at volume |
| Push-fit (e.g. JG Speedfit) | No | Excellent | Yes | £2.00-5.00 | Quick connections, mixing copper and plastic systems |
Compression fittings
The fitting has three parts: a brass body, a brass nut, and a soft copper ring called an olive. Slide the nut and olive over the pipe, push the pipe into the fitting body until it hits the internal stop, slide the olive down against the body, and tighten the nut. Hand-tight first, then one full turn with a spanner. That's it.
The critical mistake is over-tightening. One turn past hand-tight. Not two, not "until it feels solid." Over-tightening deforms the olive unevenly and can crack the brass body. Under-tightening leaves a gap. Both leak. One turn is the rule, and it's worth practising on an offcut before working on a live system.
When using two spanners on a compression fitting (one to hold the body, one to turn the nut), make sure you're turning the nut towards the body, not the body away from the nut. Twisting the body can rotate the pipe behind it and stress an upstream joint you can't see. Hold the body still. Turn only the nut.
Solder ring fittings
These are the classic "Yorkshire" fittings. Each fitting has a ring of solder pre-loaded inside. Clean the pipe end and the inside of the fitting with wire wool until both are bright copper (not just wiped, actually abraded). Apply flux paste to the pipe end, push it into the fitting, and heat the fitting with a blowtorch. When the solder melts, you'll see a silver ring appear around the joint. Remove the heat immediately.
Common mistakes: not cleaning properly (flux can't wet a dirty surface, so solder won't flow); overheating (burns the flux and prevents capillary action); not wiping excess flux while the joint is still warm (acidic flux residue causes green verdigris corrosion over months). Only lead-free solder is permitted on potable water systems under the Water Fittings Regulations 1999.
Push-fit connectors
Push-fit connectors (JG Speedfit, Hep2O) work on copper pipe with no tools at all. Push the pipe in, the internal grab ring locks it, the O-ring seals it. To release, push the collet ring and pull the pipe out.
They're fast and foolproof for accessible locations. The fittings are bulkier than compression or solder, which matters in tight spaces. Use them where access is easy. Use compression or solder for joints that will be buried in walls or under floors.
The hybrid approach is standard modern practice. Plastic pipe (Hep2O or PEX) run continuously from a manifold for long hidden runs. Copper for the visible tails at fixtures and any exposed pipework. This combines the speed and joint-free reliability of plastic with the durability and appearance of copper where it matters.
How much do you need
For a typical kitchen extension first-fix plumbing, you're running hot and cold supplies to a sink, possibly a dishwasher, and maybe a washing machine. That's 2-3 fixtures, each needing two runs (hot and cold) from the nearest connection point.
Work out your pipe runs by measuring the route on your plumbing layout drawing. Measure horizontally along the floor, add vertical drops/rises, and add 150mm per fitting for the pipe that sits inside the fitting and any adjustment cuts. Then add 10% for wastage (mis-cuts, offcuts too short to reuse).
A worked example: kitchen sink 4m from the connection point, dishwasher 5m, washing machine 6m. That's 15m of hot runs and 15m of cold runs (assuming similar routes), so 30m total. Divide by 3m per length: 10 lengths. Add 10% wastage: 11 lengths.
At current retail prices, 11 lengths at approximately £13 – £14 each is £143 – £154 for the pipe alone. Fittings, clips, and isolation valves add roughly 30-50% on top. Budget £200 – £250 for pipe and fittings on a modest kitchen extension plumbing first-fix.
£13–£14
Wednesbury brand at Screwfix, Toolstation, and Wickes. Trade merchants may be lower.
Cost and where to buy
All three major DIY retailers (Screwfix, Toolstation, Wickes) sell Wednesbury 15mm copper pipe at virtually identical prices. Wednesbury (owned by Mueller Europe, the same parent company as Yorkshire Copper Tube) is the dominant brand. You won't find meaningful price differences between these retailers for single lengths.
| Product | Screwfix | Toolstation | Wickes |
|---|---|---|---|
| 15mm x 3m (single) | £13.88 | £13.95 | £13.95 |
| 15mm x 2m (single) | £9.38 | £9.38 | £9.38 |
| 15mm x 3m (10-pack) | £134 (£13.4 each) | - | - |
The 10-pack at Screwfix saves about 50p per length. Not a game-changer, but if you're buying 10+ lengths anyway, take it.
Builders' merchants (Jewson, Travis Perkins, City Plumbing, Selco) offer trade pricing that can be significantly lower, but you'll typically need a trade account. If you're managing an extension project, open a trade account before ordering materials. The savings across all your plumbing materials will be noticeable.
Chrome-plated 15mm copper pipe (for exposed runs under sinks or to visible radiator connections) costs roughly double, around £19 per 2m length.
£4.5–£4.75
Buying 10-packs brings this closer to a lower per-metre cost.
Alternatives
Push-fit plastic pipe (15mm Hep2O or JG Speedfit barrier pipe) is the main alternative. It's cheaper per metre, lighter, faster to install, and doesn't need soldering. For long concealed runs from a manifold to individual fixtures, plastic is now the default choice for many plumbers. It bends around gentle curves without fittings, and continuous runs from manifold to fixture eliminate joints entirely in the concealed section.
Copper remains the better choice for exposed pipework (it looks professional and resists accidental damage), for areas where rodents are a concern (mice can chew through plastic), and where building control or the system designer specifies it. Many plumbers use both materials on the same job: plastic for the hidden runs, copper for the visible connections and tails.
If you're connecting plastic pipe to existing copper pipe, use a compression fitting at the transition point rather than a push-fit connector. Community reports of O-ring failures at plastic-to-copper push-fit joints after 5-7 years suggest compression is more reliable for this specific interface.
Common mistakes
Not deburring after cutting. The burr left by a pipe cutter or hacksaw restricts flow and prevents fittings from seating flush. It takes five seconds with a deburring tool. Do it every time.
Over-tightening compression fittings. One full turn past hand-tight. That's the rule. Two turns distorts the olive and can split the brass body. If a compression joint leaks after one turn, the pipe isn't seated properly or the olive is damaged. Tightening harder makes it worse, not better.
Using 15mm fittings on 1/2 inch imperial pipe. In pre-1972 houses, the existing pipe is probably 1/2 inch imperial. It looks like 15mm but it's slightly larger. Standard 15mm fittings won't seal properly. Measure the circumference (47.1mm = metric, larger = imperial) and use the correct adapter.
Not cleaning before soldering. Flux won't wet a dirty or oxidised copper surface. If the pipe isn't bright copper after cleaning with wire wool, the solder won't flow by capillary action and the joint will fail under pressure. Every soldered joint starts with abrasive cleaning. No exceptions.
Leaving flux residue on soldered joints. Flux is acidic. Left on the outside of a joint, it causes green corrosion (verdigris) over months. Left inside, it can cause pinhole corrosion over years. Wipe every joint with a damp cloth while the fitting is still warm.
Avoiding joints in floor screed. If copper pipe runs through a floor screed, the NHBC standard is to use continuous lengths with no joints in the screed itself. Soldered joints buried in screed are a known defect category. The screed's moisture and chemical composition can corrode the joint over time. Run continuous pipe through screed, and make all joints accessible above or below.
Where you'll need this
15mm copper pipe is the primary material for domestic water supply pipework across multiple phases of any extension or renovation project:
- First-fix plumbing - all hot and cold supply runs to fixture positions, routed through joists and walls before boarding
- Second-fix plumbing - final connections from pipe tails to taps, appliances, and sanitary fittings
- Plumbing layout planning - pipe sizing decisions and route planning that determine how much pipe you need and where it runs
Copper pipe is a relatively small proportion of total project cost, but poor installation (bad joints, no deburring, wrong fittings on imperial pipe) creates problems that are expensive and disruptive to fix once the building is finished. Getting it right at first-fix stage, and photographing every pipe run before boarding over, saves real money downstream.
